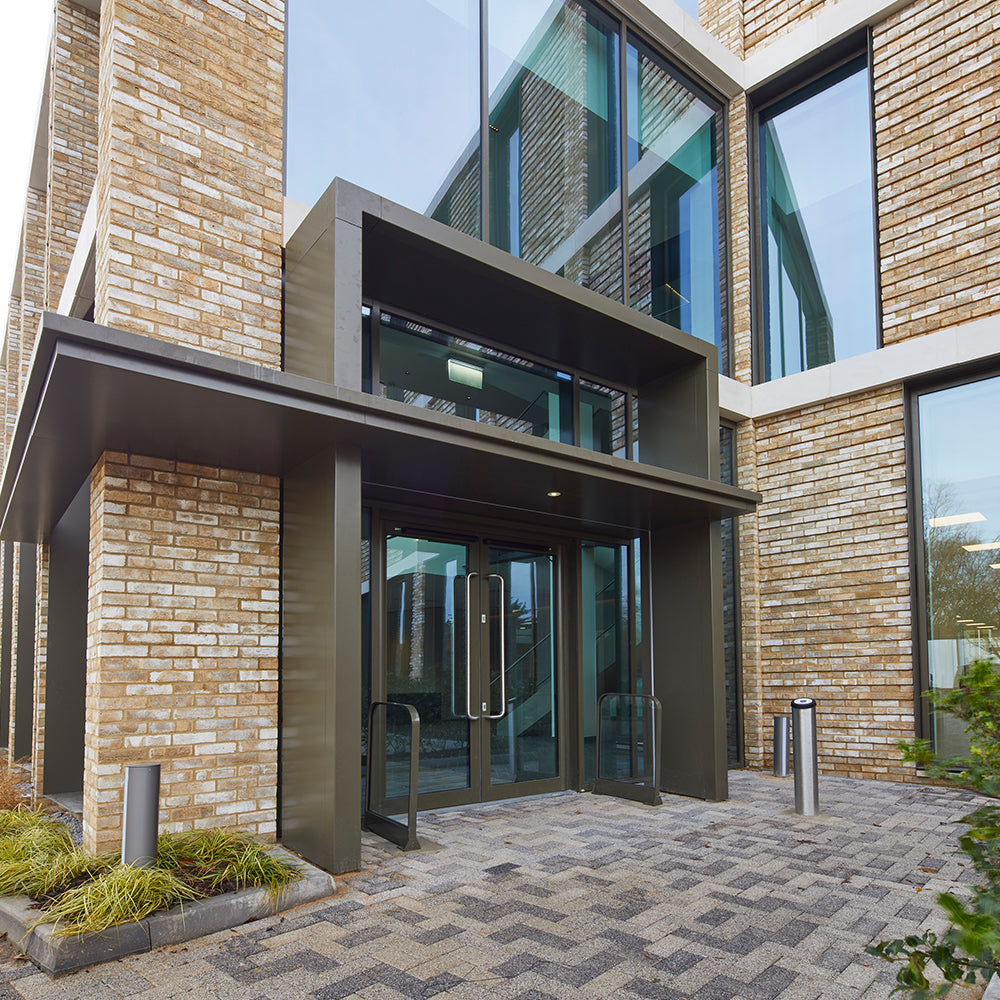

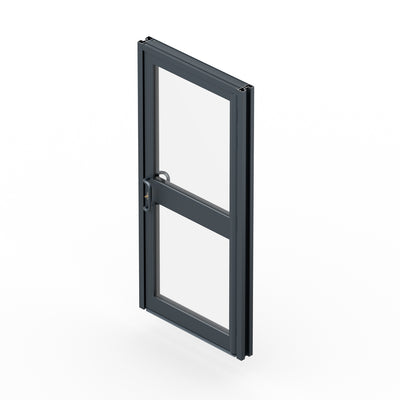

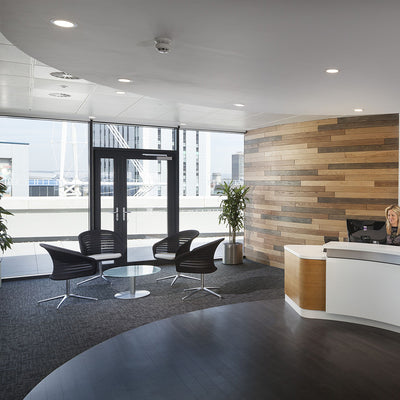

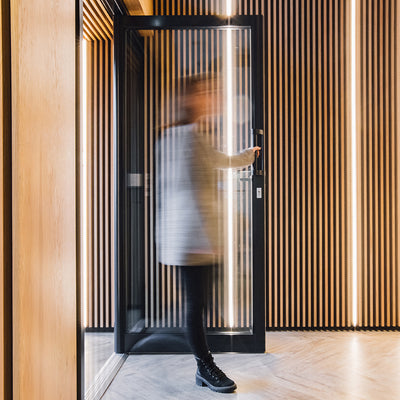

Developed for busy entrances and demanding commercial environments, the DSX 190 TB is a thermally broken aluminium door system suitable for medium, heavy and severe-duty applications.

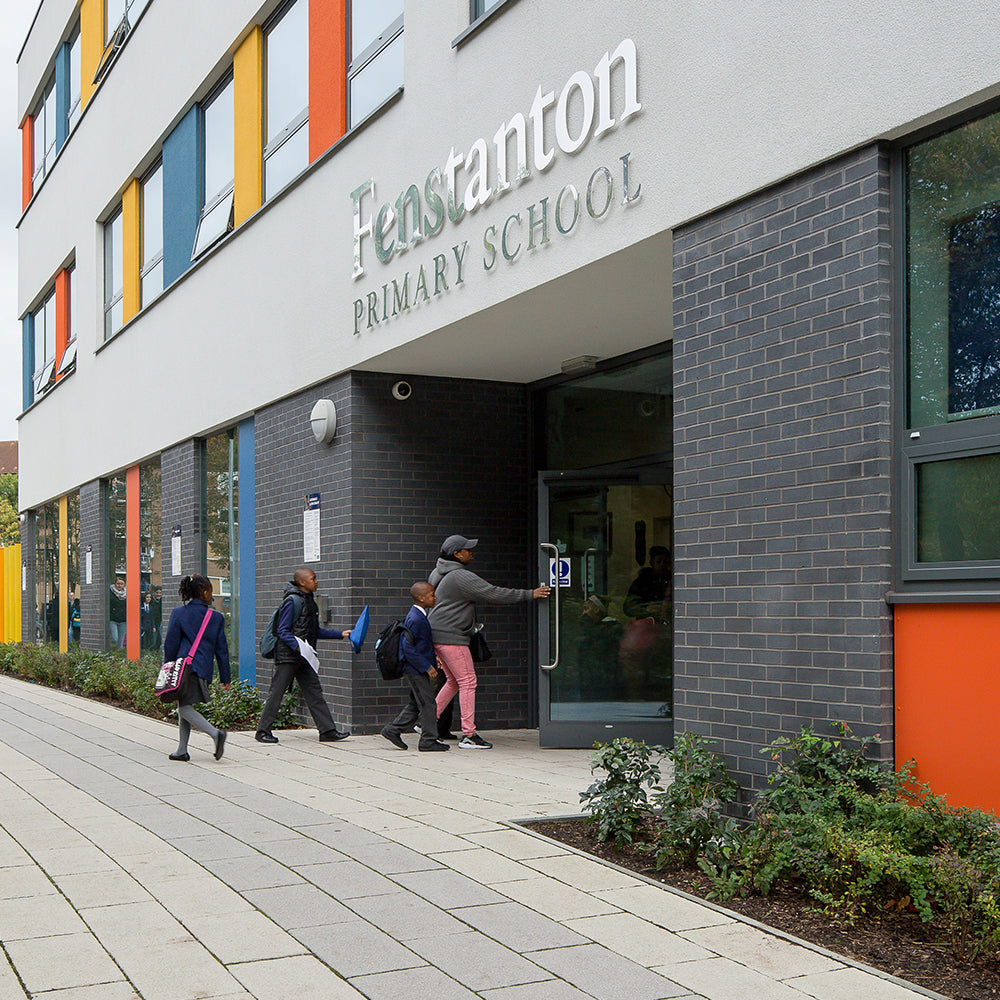

Fully welded, square-cut aluminium leaf construction provides the strength and durability required for frequently used entrances across education, healthcare, retail, commercial and public buildings. The door can be configured as a single or double-leaf doorset with single or double-acting operation, while selected arrangements are suitable for powered operators.
To System Downloads
System Information
Technical Details
Performance
U value - Subject to the door configuration and glazing specification. Contact Novastruct for project-specific calculations. Weather resistance - 800 U in accordance with BS 6375-1 Category of duty - Medium, heavy and severe-duty applications Security - PAS 24:2022+A1:2024 enhanced security Exit hardware - Panic exit hardware options to BS EN 1125 and BS EN 179 Maximum leaf weight - 160 kg with heavy-duty floor pivot and springless concealed overhead closer; 120 kg with concealed overhead closer pivot arrangement Glazing/infill thickness - Up to 42 mm
Key Features
Maximum leaf height - 3000 mm Maximum leaf width, manual operation - 1250 mm with concealed overhead closer pivot arrangement Maximum leaf width, powered operation - 1320 mm with heavy-duty floor pivot and springless concealed overhead closer Maximum leaf area - 3.3 m² Leaf depth - 62.5 mm Pivot stile depth - 90 mm Leaf construction - Fully welded, square-cut aluminium leaf construction Thermal break - Thermally broken profiles Glazing - Up to 42 mm dry-glazed insulating glass or infill units Glazing method - Aluminium glazing beads with EPDM gaskets Locking - Multipoint locking with panic and non-panic options Electronic access control - ✔ Finger protection - Anti-finger-trap pivot stiles as standard, with full-round and half-round options Thresholds - Document M-compliant threshold options Powered operation - Suitable configurations available for powered operators Compatible systems - FSX 100 and FSX 110 curtain walling systems Material - Aluminium profiles extruded from 6063-T6 and/or 6060-T66 alloy Finishes - Wide range of colours and finishes Warranty - Lifetime warranty on the welded construction, on application
Configurations
Open in - ✔ Open out - ✔ Single acting - ✔ Double acting - ✔ Single leaf doorset - ✔ Double leaf doorset - ✔ Finger-guard pivot stile - ✔ Standard Full-round finger guard - ✔ Half-round finger guard - ✔ Open-out panic door Powered or automatic swing operation - ✔ Multipoint locking - ✔ Panic hardware - ✔ Electronic access control - ✔ Document M threshold options - ✔
Key Features and Benefits
Built for demanding, high-footfall locations
The welded aluminium leaf construction creates a robust high-traffic entrance door for buildings where reliability and continued operation are key considerations. The system is suitable for medium, heavy and severe-duty applications.
Thermally broken entrance solution
Thermally broken aluminium profiles support the thermal performance of the entrance assembly. Calculations can be completed for the proposed door design, size and glazing specification.
Configurable around the project
Single or double leaves, single or double-acting operation, inward or outward opening and powered-operation options give designers flexibility across different building types and entrance requirements.
Enhanced security options
PAS 24:2022+A1:2024 enhanced security can be specified alongside multipoint locking, panic or non-panic hardware and electronic access control, subject to the approved configuration.
Finger protection included as standard
The standard anti-finger-trap pivot stile helps address finger-trapping risk at the hinge side of the door. Both full-round and half-round finger-guard arrangements are available.
Supports accessible entrance design
Document M-compliant threshold options are available for projects requiring an accessible entrance arrangement.
Suitable for automated entrances
Selected configurations can be combined with powered operators, making the system suitable for frequently used automatic or power-assisted entrances.
Panic exit hardware options
Hardware options are available to BS EN 1125 and BS EN 179, allowing the door to be configured around the intended exit application.
Coordinates with Novastruct curtain walling
Compatibility with FSX 100 and FSX 110 provides a coordinated approach when incorporating the entrance door within a Novastruct curtain walling system.
Choice of architectural finishes
A wide range of colours and finishes allows the door to coordinate with the surrounding façade and the wider architectural palette.
Features
Thermally broken aluminium entrance door system
Fully welded, square-cut aluminium leaf construction
Suitable for medium, heavy and severe-duty applications
Independently tested to PAS 24:2022+A1:2024
Exposure category 800 U in accordance with BS 6375-1
Single and double-leaf doorset options
Single and double-acting operation
Open-in and open-out configurations
Suitable arrangements available for powered or automatic swing operation
Multipoint locking with panic and non-panic options
Panic exit hardware options to BS EN 1125 and BS EN 179
Electronic access-control options
Anti-finger-trap pivot stile supplied as standard
Full-round and half-round finger-guard options
Document M-compliant threshold options
Dry glazing for insulating glass or infill panels up to 42 mm
Aluminium glazing beads with EPDM gaskets
Compatible with FSX 100 and FSX 110 curtain walling
Wide selection of colours and finishes
Lifetime warranty on the welded construction, available on application
Design Considerations
Size and operating arrangements
Maximum leaf dimensions and weights vary according to the closer and pivot arrangement selected:
Manual operation: maximum leaf width of 1250 mm and maximum leaf weight of 120 kg when using a concealed overhead closer pivot arrangement.
Powered or power-assisted operation: maximum leaf width of 1320 mm and maximum leaf weight of 160 kg when using a heavy-duty floor pivot with a springless concealed overhead closer.
Maximum leaf height: 3000 mm.
Maximum leaf area: 3.3 m².
Final door sizing must be considered in relation to the operating method, closer arrangement, leaf weight and approved system configuration.
Safety and inclusive access
Anti-finger-trap pivot stiles are included as standard. Full-round and half-round options are available, with the half-round finger guard applicable to open-out panic-door arrangements. Document M-compliant threshold options can also be incorporated to help meet the accessibility requirements of the wider entrance design.
Security and door hardware
The DSX 190 TB is available with multipoint panic or non-panic locking, panic exit devices and electronic access control. Where PAS 24 performance is required, the complete door arrangement, including its hardware, opening configuration and locking system, must follow the approved specification.
Thermal requirements
The performance of a completed DSX 190 TB doorset will depend on its dimensions, configuration and chosen glazing or infill. Project-specific U-value calculations can be provided by Novastruct based on the proposed door specification.
Glazing and infill
The system accommodates dry-glazed insulating glass or infill units up to 42 mm thick. Units are retained using aluminium glazing beads and EPDM gaskets.
Façade integration
Compatibility with FSX 100 and FSX 110 curtain walling allows the DSX 190 TB to be incorporated into coordinated glazed entrance and façade designs.
Additional Information
The DSX 190 TB can be configured to meet the operating, access, security and dimensional requirements of a wide range of commercial entrance applications. Available arrangements include single and double doorsets, inward and outward opening, single and double-acting operation and configurations suitable for powered operators.
Revit/BIM
Novastruct’s BIM Models are downloadable in the Revit format and also available on request as IFC files. Our BIM Models provide users with 3D images of the products as well as the critical COBIE data to provide guidance through the whole design and construction process.
